Beyond the Break-Fix Cycle: An Introduction to the Four Pillars of Industrial Maintenance

/ Excel, Reliability Centered Maintenance / By

Target Audience: Maintenance Managers, Reliability Engineers, Data Scientists (IIoT), and Operations Professionals.

1. Introduction: The High Cost of Waiting

Imagine a critical turbine at a regional power plant seizing up at 2:00 AM during a winter peak freeze. Or consider a fully loaded logistics fleet grounded by a transmission failure just days before the holiday shipping deadline. These aren’t just mechanical failures; they are operational catastrophes that hemorrhage revenue, damage reputation, and endanger safety.

For decades, the industrial world operated on a simple, albeit flawed, philosophy: “If it ain’t broke, don’t fix it.”

This reactive mindset views maintenance as a necessary evil—a cost centre to be minimised. However, the hidden costs of this approach are staggering. Unplanned downtime costs industrial manufacturers an estimated $50 billion annually. Beyond the financial hit, reactive maintenance introduces safety risks to technicians rushing repairs and often causes secondary damage to connected equipment.

We are currently witnessing a massive shift in the industry. We are evolving from simple reaction to strategic, data-driven prediction. This post serves as your primer on the four core maintenance strategies, setting the stage for a future where we don’t just fix machines—we understand them (with data).

2. The Four Pillars of Modern Maintenance

To implement advanced strategies like AI-driven prediction, we must first understand the landscape. Here are the four primary maintenance strategies, ranging from basic to advanced.

2.1. Reactive Maintenance (Run-to-Failure)

Definition: As the name implies, repair or replacement occurs only after a component or system has failed.

Driver: Short-term cost avoidance. It requires zero planning and zero upfront investment in monitoring technology.

Drawbacks: This is the “firefighting” mode. It results in unscheduled downtime, halting production. It places immense stress on maintenance teams, requires expensive expedited shipping for spare parts, and carries the highest risk of catastrophic failure.

2.2. Preventive Maintenance (Time- or Usage-Based)

Definition: Maintenance is scheduled at fixed intervals based on time (e.g., every 6 months), distance (every 5,000 miles), or run-hours.

Driver: Manufacturer recommendations or historical Mean Time Between Failure (MTBF) data.

Drawbacks: While better than reactive, this approach suffers from inefficiency. It often leads to over-maintenance, where perfectly healthy parts are replaced “just in case.” Paradoxically, it can also introduce “infant mortality”—where a stable machine fails shortly after maintenance due to human error during the unnecessary repair.

2.3. Condition-Based Monitoring (CBM)

Definition: Maintenance is triggered only when real-time data indicates the asset’s health has degraded. Sensors monitor specific thresholds (e.g., vibration limits, temperature spikes, or oil particulate levels).

Driver: Direct measurement of asset health.

Benefits: It eliminates the guesswork of Preventive Maintenance. You fix the machine because it is actually showing signs of distress, extending the asset’s life and reducing labor costs.

2.4. Predictive Maintenance (PdM)

Definition: The gold standard of modern maintenance. PdM uses Machine Learning and historical data to detect subtle patterns that humans miss. It forecasts when a failure is likely to occur in the future.

Driver: Prognostics—specifically, predicting the Time-to-Failure (TTF) or Remaining Useful Life (RUL).

Benefits: It maximizes component life (squeezing every dollar of value out of a part) while scheduling downtime at the most operationally convenient moment. It allows for “Just-in-Time” inventory management.

3. Industry Example: The Truck Tire Maintenance Spectrum

To make these abstract concepts tangible, let’s look at how a logistics company manages truck tyres.

StrategyAction: Truck Tire MaintenanceOutcome & Cost
ReactiveWait for a blowout on the highway.High Cost: Emergency roadside service, late delivery penalties, and potential damage to the truck’s fender/axle.
PreventiveChange tyres on every truck every 50,000 miles, regardless of wear.Medium Cost: Wastes remaining tread life on trucks driven gently (over-maintenance). Prevents most blowouts but is inefficient.
CBMUse telematics to alert when tire pressure drops below 95 PSI.Low-Medium Cost: Prevents immediate failure from under-inflation. However, it misses issues like uneven tread wear or sidewall fatigue.
PdMUse AI to analyze pressure, temp, axle weight, road types (GPS), and mileage to predict Remaining Useful Life.Optimised: The system predicts failure in 3 weeks. You schedule replacement 1,000 miles before the failure window. Asset value is maximised, and downtime is planned.

4. Setting the Stage: RCM and the PdM Connection

It is important to note that Predictive Maintenance is not the solution for every asset. It requires sensors, data infrastructure, and data science talent. This is where Reliability-Centered Maintenance (RCM) comes in.

RCM is the strategic framework used to decide which of the four pillars to apply to a specific asset. It asks: “What is the consequence of failure?”

  • For a lightbulb in a storage closet, Reactive maintenance is fine.
  • For a turbine powering the entire plant, Predictive maintenance is essential.

PdM is the tool; RCM is the strategy that tells you when to pick up that tool.

5. Visualising Maintenance Efficiency

In this blog series, we don’t just talk about theory; we apply it. In the accompanying Jupyter Notebook, we will generate synthetic data to visualize the mathematical difference between Reactive and Preventive strategies.

5.1. Conceptual Focus: Defining Core Metrics

To measure success, we need metrics. We will focus on two:

  1. MTBF (Mean Time Between Failure): The average time a system operates before it fails. Higher is better. It measures Reliability.
  2. MTTR (Mean Time To Repair): The average time required to get a failed component running again. Lower is better. It measures Maintainability.

5.2. Import Libraries and Configure

5.2. Notebook Tasks

We will use Python to simulate 100 industrial machines.

  • Simulation Engine:
    • It doesn’t just make up two numbers; it generates thousands of individual “events” (run cycles and repair cycles) using statistical distributions (Normal and Gaussian) to mimic real-world variance.
  • Strategic Modelling:
    • Group A (Reactive) is modelled with high variance. Failures are catastrophic, leading to massive Repair Times (MTTR ~48hrs).
    • Group B (Preventive) is modelled with high consistency. The MTBF is higher because the machines are kept healthy, but the real winner is the MTTR (~6hrs), since parts and labour are planned.
  • Visualization:
    • I used a dual-subplot layout to contrast the metrics clearly.
    • MTBF (Left): Shows the gain in reliability.
    • MTTR (Right): Shows the massive reduction in downtime cost.
    • I applied a custom colour palette: Red for the “Danger/Reactive” state and Teal for the “Safe/Preventive” state to make the chart intuitive at a glance.

Ready to see the math behind the maintenance? Check out the code below to run the simulation yourself.

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns

# --------------------------------------------------------------------------------
# 1. SETUP & CONFIGURATION
# --------------------------------------------------------------------------------
# Setting a seed for reproducibility
np.random.seed(42)

# Configuration for our simulation
NUM_MACHINES_PER_GROUP = 50
SIMULATION_EVENTS = 20  # Average number of operational cycles per machine to simulate

# Define parameters for the two strategies
# Reactive: Breakdowns happen often, repairs take a long time (unplanned).
# Preventive: Maintenance is frequent but controlled, repairs are fast.

params = {
    'Reactive': {
        'group_name': 'Group A (Run-to-Failure)',
        'mtbf_mean': 300,  # Hours: Fails relatively quickly
        'mtbf_std': 100,   # High unpredictability
        'mttr_mean': 48,   # Hours: Long repair time (waiting for parts/diagnosis)
        'mttr_std': 15,    # High variance in repair time
        'color': '#E63946' # Red indicating alert/danger
    },
    'Preventive': {
        'group_name': 'Group B (Preventive)',
        'mtbf_mean': 550,  # Hours: Lasts longer due to health checks
        'mtbf_std': 40,    # Consistent performance
        'mttr_mean': 6,    # Hours: Short, planned downtime
        'mttr_std': 2,     # Very predictable repair time
        'color': '#2A9D8F' # Teal indicating stability/safe
    }
}

5.3. Generating Synthetic Data

# --------------------------------------------------------------------------------
# 2. SYNTHETIC DATA GENERATION
# --------------------------------------------------------------------------------
def generate_machine_data(group_type, n_machines, n_events):
    data = []
    p = params[group_type]

    for i in range(n_machines):
        machine_id = f"{group_type[0]}-{i+1:03d}"

        # Generate operational cycles (Uptime)
        # Using normal distribution but ensuring no negative times
        uptimes = np.random.normal(p['mtbf_mean'], p['mtbf_std'], n_events)
        uptimes = np.maximum(uptimes, 10) # Floor at 10 hours

        # Generate repair cycles (Downtime)
        downtimes = np.random.normal(p['mttr_mean'], p['mttr_std'], n_events)
        downtimes = np.maximum(downtimes, 1) # Floor at 1 hour

        for uptime, downtime in zip(uptimes, downtimes):
            data.append({
                'Machine_ID': machine_id,
                'Strategy': group_type,
                'Uptime_Hours': uptime,
                'Repair_Hours': downtime
            })

    return pd.DataFrame(data)

print("Generating synthetic failure logs...")
df_reactive = generate_machine_data('Reactive', NUM_MACHINES_PER_GROUP, SIMULATION_EVENTS)
df_preventive = generate_machine_data('Preventive', NUM_MACHINES_PER_GROUP, SIMULATION_EVENTS)

# Combine into one master log
df_all = pd.concat([df_reactive, df_preventive], ignore_index=True)

df.head()

Machine_ID	Strategy	Uptime_Hours	Repair_Hours
0	R-001	Reactive	417.481406	39.055130
1	R-001	Reactive	112.101906	55.929522
2	R-001	Reactive	267.220494	56.198846
3	R-001	Reactive	295.833998	65.362794
4	R-001	Reactive	301.590866	62.492205

5.4. Calculating Core metrics

# --------------------------------------------------------------------------------
# 3. CALCULATION: CORE METRICS
# --------------------------------------------------------------------------------
# Group by Strategy and calculate the means
metrics = df_all.groupby('Strategy').agg({
    'Uptime_Hours': 'mean',
    'Repair_Hours': 'mean'
}).reset_index()

metrics.columns = ['Strategy', 'MTBF', 'MTTR']

print("\n--- Calculated Metrics ---")
print(metrics)

--- Calculated Metrics ---
     Strategy        MTBF       MTTR
0  Preventive  550.299535   6.039713
1    Reactive  303.271413  48.599779

5.5. Calculating Core metrics

# --------------------------------------------------------------------------------

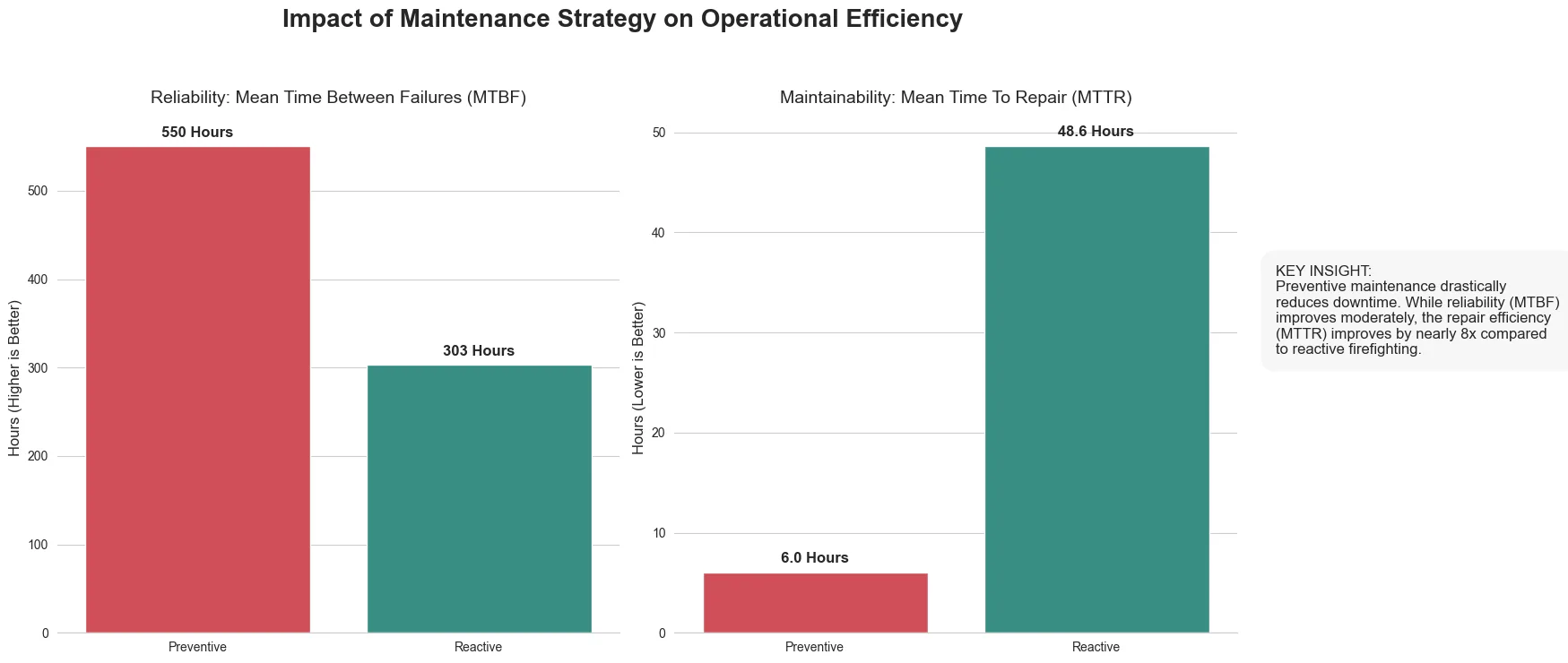

# 4. VISUALIZATION
# --------------------------------------------------------------------------------
# Set style
sns.set_style("whitegrid")
plt.rcParams['font.family'] = 'sans-serif'

# Create a figure with two subplots side-by-side
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 7))
fig.suptitle('Impact of Maintenance Strategy on Operational Efficiency', fontsize=20, weight='bold', y=1.05)

# --- Plot 1: MTBF (Reliability) ---
# Higher is better
bars1 = sns.barplot(x='Strategy', y='MTBF', data=metrics, ax=ax1,
                    palette=[params['Reactive']['color'], params['Preventive']['color']])

ax1.set_title('Reliability: Mean Time Between Failures (MTBF)', fontsize=14, pad=15)
ax1.set_ylabel('Hours (Higher is Better)', fontsize=12)
ax1.set_xlabel('')

# Annotate bars
for i, p in enumerate(bars1.patches):
    height = p.get_height()
    ax1.text(p.get_x() + p.get_width()/2., height + 10,
             f'{height:.0f} Hours', ha="center", fontsize=12, weight='bold')

# --- Plot 2: MTTR (Maintainability) ---
# Lower is better
bars2 = sns.barplot(x='Strategy', y='MTTR', data=metrics, ax=ax2,
                    palette=[params['Reactive']['color'], params['Preventive']['color']])

ax2.set_title('Maintainability: Mean Time To Repair (MTTR)', fontsize=14, pad=15)
ax2.set_ylabel('Hours (Lower is Better)', fontsize=12)
ax2.set_xlabel('')

# Annotate bars
for i, p in enumerate(bars2.patches):
    height = p.get_height()
    ax2.text(p.get_x() + p.get_width()/2., height + 1,
             f'{height:.1f} Hours', ha="center", fontsize=12, weight='bold')

# --- Final Aesthetic Touches ---
# Remove top and right spines for a cleaner look
sns.despine(left=True)

# Add a text box explaining the insight
insight_text = (
    "KEY INSIGHT:\n"
    "Preventive maintenance drastically\n"
    "reduces downtime. While reliability (MTBF)\n"
    "improves moderately, the repair efficiency\n"
    "(MTTR) improves by nearly 8x compared\n"
    "to reactive firefighting."
)
plt.figtext(1.02, 0.5, insight_text, fontsize=12, bbox=dict(facecolor='#f0f0f0', alpha=0.5, boxstyle='round,pad=1'))

plt.tight_layout()
print("Visualization created successfully.")

# Save the plot nicely (in a real notebook you'd just use plt.show())
# plt.show()

    6. Conclusion & Next Steps

    Moving beyond the “Fix-When-Broken” cycle is not just an engineering upgrade; it is a fundamental business imperative. By understanding these four pillars, we can stop being victims of randomness and start managing reliability.

    Coming Up Next: In Part 2, we will dive deep into the mathematics of reliability, exploring survival analysis and taking our first steps toward building a predictive model.
